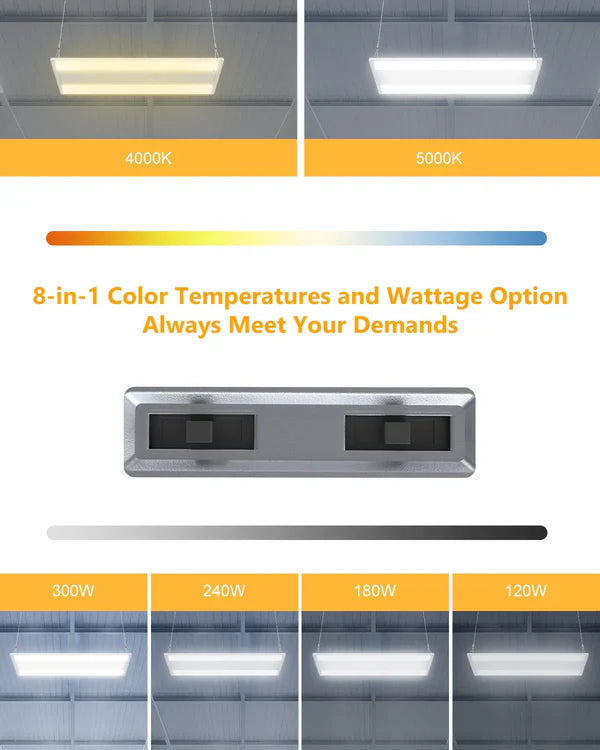

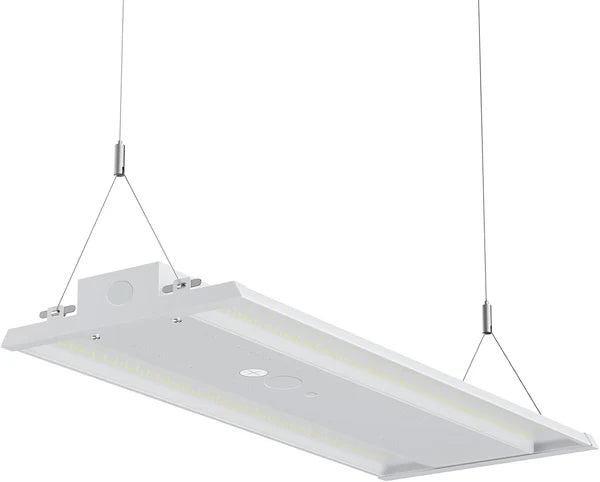

The YXL-LIGHTING LED linear high bay light adopts high efficiency LED chip, the luminous efficacy is up to 150LM/W. The device offers adjustable wattage and correlated color temperature (CCT) functionality. Specifically, wattage can be configured to 100%, 80%, 60%, or 40%, while CCT is selectable between 4000K and 5000K.
For detailed product specifications, please refer to the product PDF document.

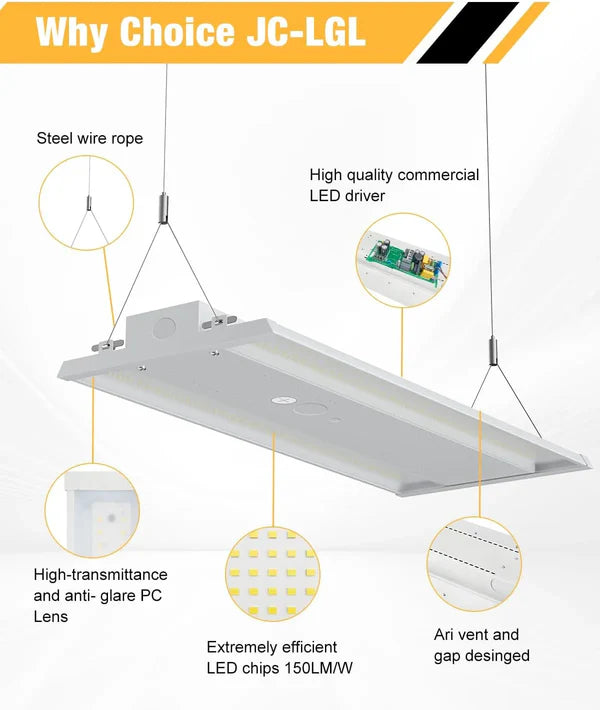

This light are made of rugged cold-rolled steel plate corrosion-resistant housing, and an excellent thermal management system effectively extends the service life of the fixture. Ultra-Compact, strudy design saves freight and space on lifts and racks during instllation, making it ideal for warehousing, large indoor spaces, retail and commercial applications.

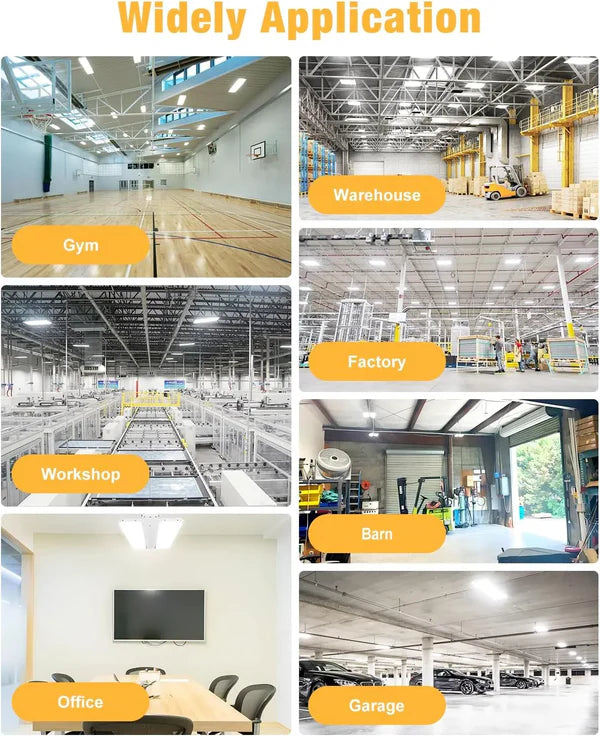

Applications
• Auto Dealerships
• Big Box Retailers
• Convention Centers
• Commercial
• Gymnasiums
• Industrial
• Manufacturing
• Storage Facilities
• Warehouses
• Factories
• Max Delivered Lumens:
7800lm-45000lm
• CCT adjustable:
4000K - 5000K
• Power:
300W/240W/180W/120W
• Suitable for damp locations

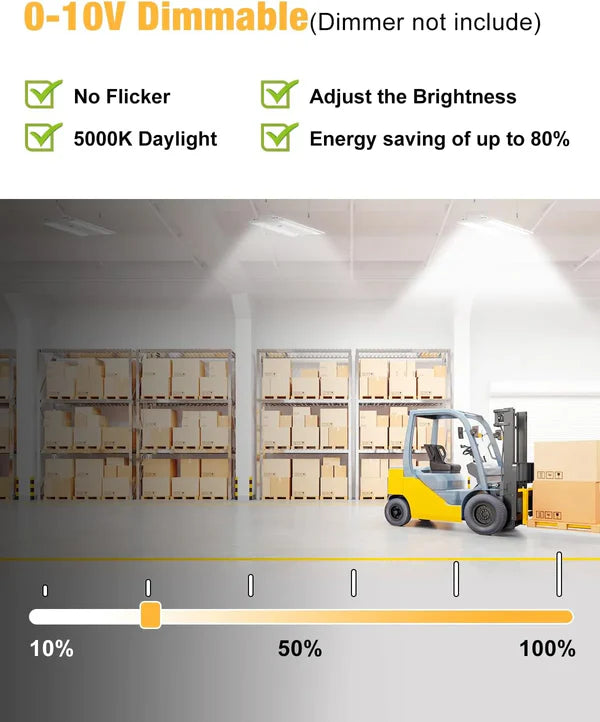

• Dimmable:
0-10V
• Input Voltage:
AC100-277V
• 150 Lumen Per Watt
• Limited Warranty:
5-Year
• Total Harmonic Distortion:
<20% at full load
• Operating Temperature:
-31°F to 122°F
• Power Factor:
>0.9 at full load
• CRI:
≥ 70
• PIR Sensor Available (Sold Separately)
• Prismatic diffuser for least glare light
Document
User Guide
Result:
