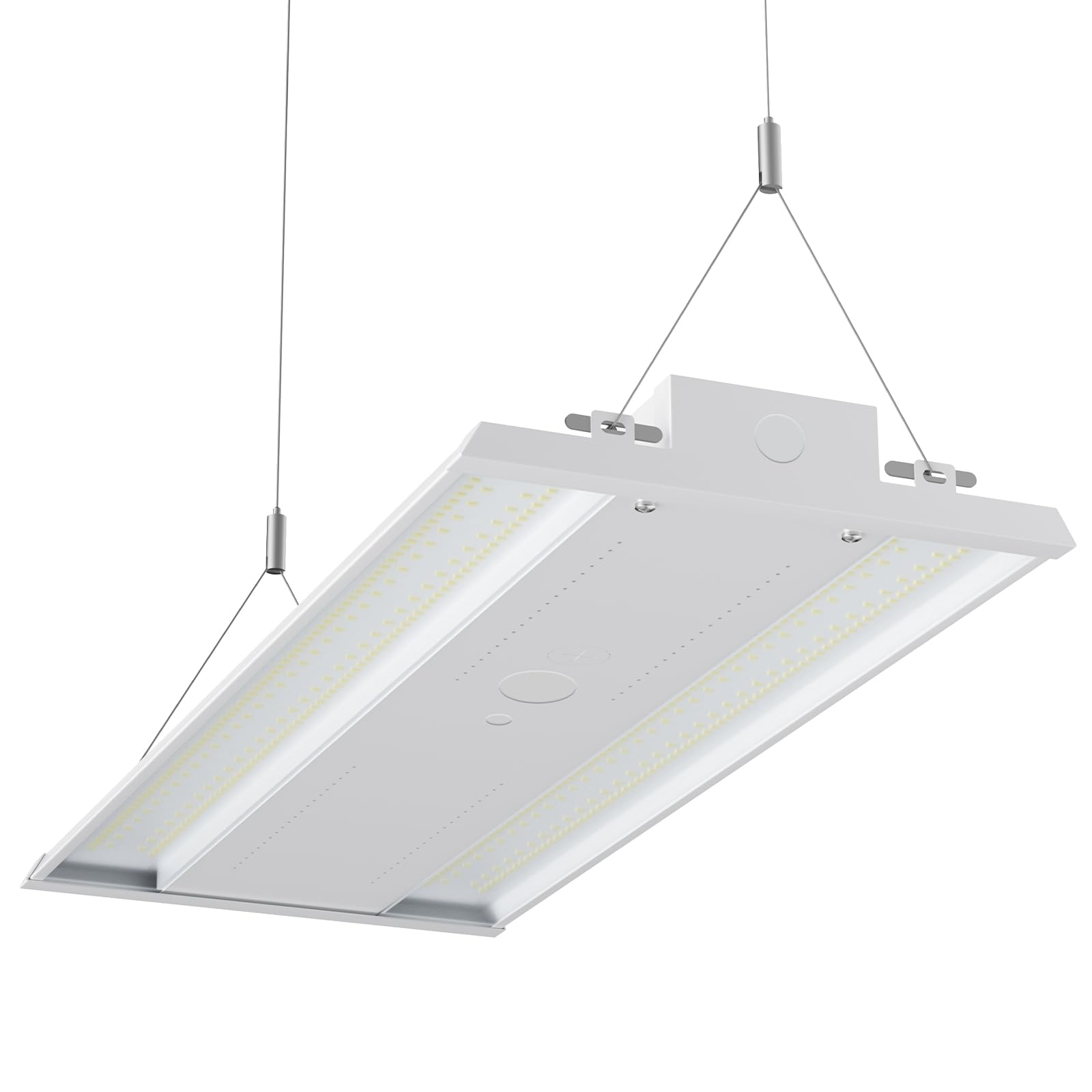

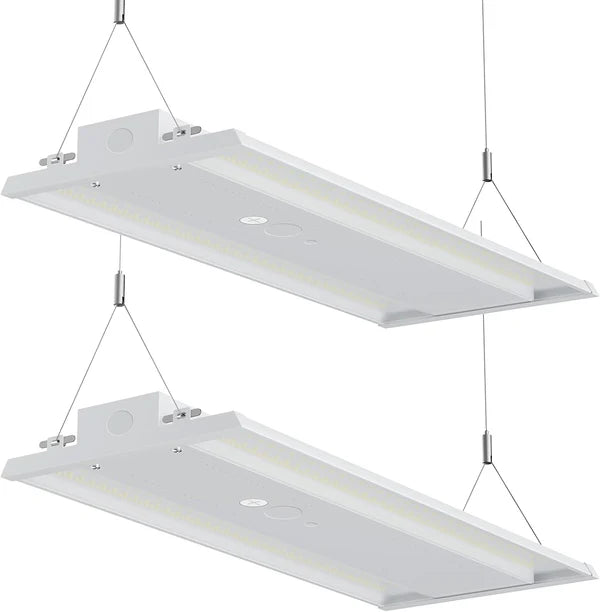

YXL LIGHTING LED linear high bay light adopts high efficiency LED chip, the luminous efficacy is up to 150LM/W. Using only 130W/210W/300W/400W power can emit 19,500lm / 31,500lm / 45,000 / 60,000 lumens of high quality lights , with a daylight color temperature of 5000K.
For detailed product specifications, please refer to the product PDF document.
Applications
• Auto Dealerships
• Big Box Retailers
• Convention Centers
• Commercial
• Gymnasiums
• Industrial
• Manufacturing
• Storage Facilities
• Warehouses
• Factories
• Max Delivered Lumens:
7800lm-45000lm
• CCT Temperature:
5000K
• Power:
Selectable 100% - 80% - 60%
• Estimated L70 Lifetime @ 77˚F:
>70000
• Dimmable:
0-10V
• Input Voltage:
AC100-277V
• 150 Lumen Per Watt
• Limited Warranty:
5-Year
• Total Harmonic Distortion:
<20% at full load
• Operating Temperature:
-31°F to 122°F
• Power Factor:
>0.9 at full load
• CRI:
≥ 70
• Prismatic diffuser for least glare light
Document
User Guide
Product Description
Hear Dissipation High Quality LED Chips Anti-Glare Lens

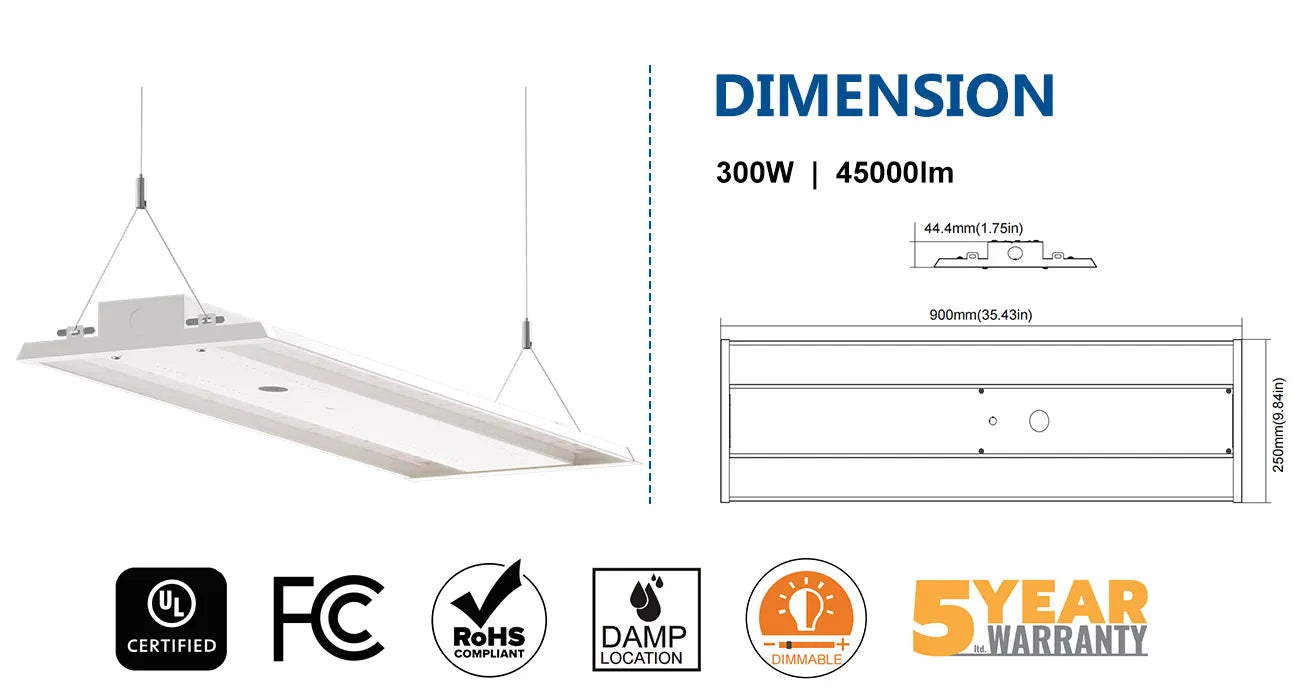

Typical height of installation
APPLICATIONS
Result:
Looking to implement your own lighting simulation or in need of a quote for your lighting projects?
