YXL LIGHTING LED High Bay Light HB Series offer selectable wattage options(100%-80%-60%), allowing you to customize your lighting experience. It includes 0-10V dimming for energy conservation.
This light is not only aesthetically pleasing, but also built to withstand tough conditions with its IK08 and IP65 ratings. DLC/ETL/FCC/RoHS are approval, as a testament to its exceptional quality, it comes with a generous 5-year warranty.

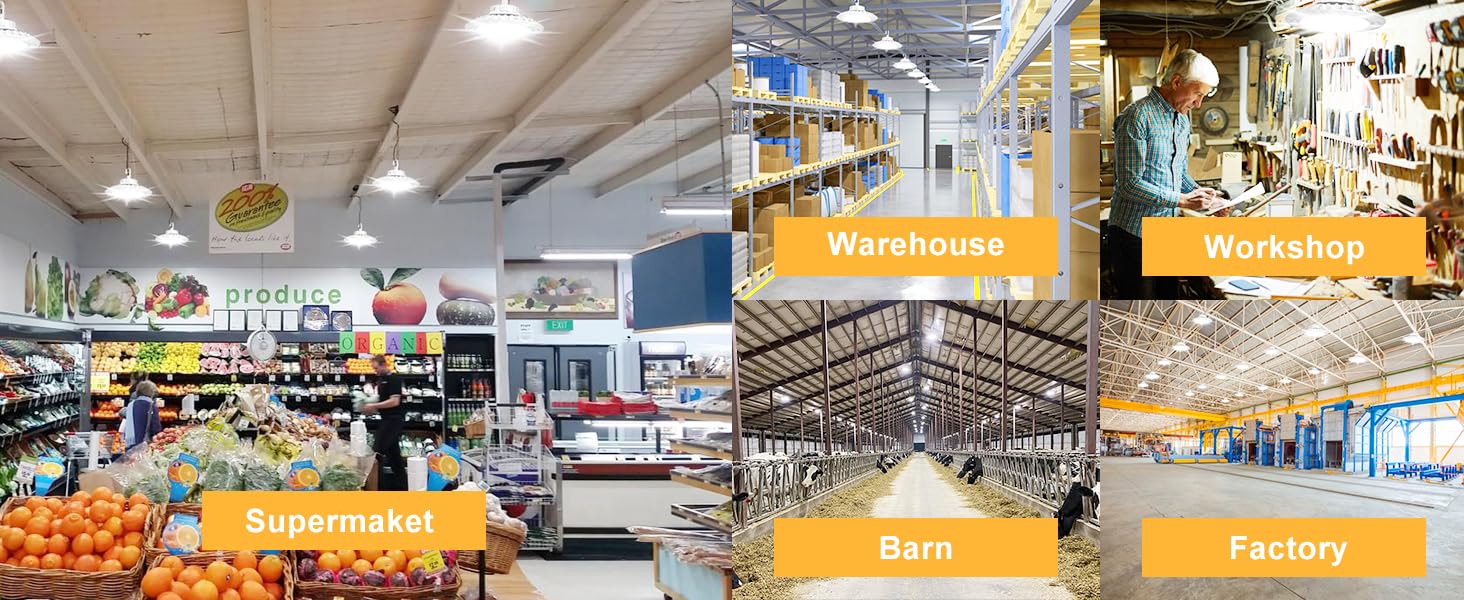

Applications
• Big Box Retailers
• Convention Centers
• Distribution Centers
• Factories
• Gymnasiums
• High Bays
• Manufacturing Plants
• Packaging Facilities
• Shop Lights
• Warehouses
• Max Delivered Lumens:
15000lm-48000lm
• CCT Temperature:
5000K/5700K
• Power:
Selectable 100% - 80% - 60%
• Estimated L70 Lifetime @ 77˚F:
>70000
• Dimmable:
0-10V
• Input Voltage:
AC100-277V
• 150 Lumen Per Watt
• Limited Warranty:
5-Year
• Total Harmonic Distortion:
<20% at full load
• Operating Temperature:
-31°F to 122°F
• Power Factor:
>0.9 at full load
• CRI:
≥ 70
Document
User Guide
Being a part of ![]()
YXL LIGHTING commercial line of products, 150-240 Watt UFO Led High Bay Lighting HB Black Series is capable of providing the best lighting inside the commercial space with high lumen output. The lumen output is comparatively more, making it the best option for lighting up space with ceiling heights 15ft.-25ft. It also gives you the freedom to control the brightness with dimming features ranging from 1V to 10V. It fits into your ceiling with hook mount standard for ease of installation, with surface mounted baracket optional. High Bay LED Light uses a multi-point design that ensures even distribution of light. So, light levels across a given surface do not vary. Uneven light can cause distractions while working, so all the shop owners choose LED Shop Lights for even and smooth lighting.
☎ 【5 YEARS WARRANTY】- We support amazing ETL certified 5-year warranty, each UFO lighting fixture has been tested to function 100% effectively. We persist in product quality and provide you excellent customer service within 24 hours from YXL LIGHTING, and 60 months warranty for any quality issues. Really make your shopping worry-free.
☎ 【SUPER WATERPROOF & EYE FRIENDLY 5000K】- Our ufo light is well designed stylish and unique, featuring IP65 certified water resistant and dustproof, suitable for damp places or other harsh environments. The color temperature of the high bay light is 5000K, and the CRI is over 70, universally known as closest to daylight. Bring you unbeatable lighting experience, you can purchase with confidence.
☎ 【INCREADIBLE BRIGHTNESS LIKE THE SUN】- The 150W UFO light features 22,500 output lumens eyes friendly white lights with no glaring or strobe. 3 wattages selectable(150W&100W&90), which can be adjusted according to the use environment. It is dimmable at 0-10V, any suitable brightness for your choice, offer awesome lighting experience and protect eyes. (Note: Dimmer switch not included.)
Specifications:
- Power: 150W-300W
- Voltage: 100-277V AC
- Brightness: 22500LM-45000LM
- Color Temperature: 5000K
- Protection Grade: IP65
- Beam Angle: 120 degree
- Equivalent: 400W traditional metal halide fixtures
- Input: 100-277Vac, 50/60Hz
EXTRA BRIGHT TO LIGHT UP YOUR WORLD!
- Higher lighting efficiency of 150 LM/W
- 5000K 22500LM-45000LM High Brightness, Bright as Daylight
- With safety rope, US hook, 6FT Cable with 3-Pin USA Plug
- Excellent Heat Dissipation, Corrosion-resistant
- Dimming Standard
- More than 50000hrs Service Life
- Widely Applications
YXL LIGHTING high bay led lights use of die-casting aluminum material provides strong protection and durability for the heat while ensuring heat dissipation. Hollow design to increase the heat dissipation surface, great heat dissipation last longer lifespan.
YXL LIGHTING led high bay led lights have professional IP65 waterproof protection device bulit for all weather conditions, suitable for both wet and damp locations.
YXL LIGHTING led warehouse lighting Use the durable power supply for a wide range of voltages from AC100-277V. 0-10V Smooth dimming function allows you to adjust the brightness over your space and save energy according to your needs, just enjoy the brightness!
☎ 【HASSLE-FREE INASTALLATION & VERSATILE APPLICATION】- The UFO lights can be effortlessly installed in 3 minutes. Comes with 5FT power cord, plug and play standard American 3-prong plug, safety rope to fix, and portable hook. It can be put in any place need high bay lighting, like barn lights, garage lights, warehouse lights, shop lights, and gym lighting, etc.
YXL LIGHTING UFO LED high bay light provides you with a 1.97ft safety cable to make the luminaire more stable and safe.
YXL LIGHTING high bay led light come with 6ft power cord and US plug, solve the problem of short wires and the need for additional wiring while the installation, which is easy to install even not professional.
YXL LIGHTING high bay led lights have standard US hook can be easily attached to the ceiling structural member. There is no need to purchase additional accessories to easily complete the installation of the fixture.
☎ 【ULTRA SOLID BUIL & LONG WORKING TIME】 - Adopt professional ADC12 and heavy die-cast aluminum housing, these high bay led lights will ensure better heat-dissipation and IK08 protection level. It can be used up to 50000 hours, equivalent to around 34 years if high permormance work for 4 hours per day. Great value for your money!
Supper Bright High Bay LED Light for Widely Used
☎ Super Bright High Quality Driver No Flicker Installation
Result:
